Flat Surface High Precision Woven Stainless Steel Wire Mesh
Stainless Steel Filter Wire Mesh Screen Overview Stainless steel wire and mesh is a type of wire mesh deep-processed product made of high-grade stainless steel wire SUS302 304 304L 316 316L. Stainless steel wire mesh has different weaving methods: plain weave, twill weave, Dutch weave, Reverse Dutch Weave. Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no-curl, easy to use, uniform screen thickness, Antistatic, anti-acid and alkali resistance Corrosion, the product has the characteristics of acid and alkali resistance, temperature resistance, wear-resistance and other properties, therefore, in recent years, stainless steel net is widely used in many different fields.
Material: SS 201, 202, 304, 304L, 316, 316L, 321, 430, etc.

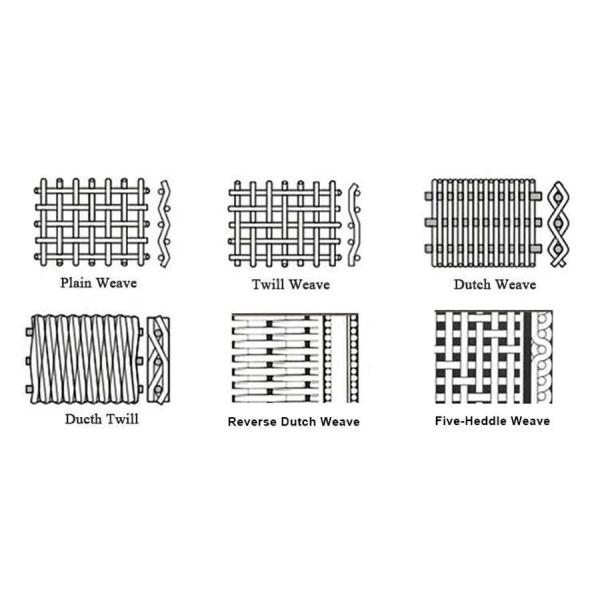

Types of weave: Plain Weave, Twill Weave or Dutch Weave
Mesh count: 1-635 mesh
Diameter: 0.0008″-0.08″ (0.02-2.0 mm)
Standard width/roll: 3 ft (36 in.), or 1 m in metric, customization available
Standard length/roll: 100 ft (1,200 in.), or 30m in metric, customization available
Packing: Bubble film, kraft, plastic cloth, wooden case
Use: Filters, sieve, chemical industry, mine industry, paper-making, etc.
Delivery Time: 5 days for stock material
| Mesh | Guage | Wire dia (mm) |
8 | 24 | 0.558 |
| 26 | 0.457 |
| 27 | 0.400 |
| 28 | 0.376 |
10 | 24 | 0.558 |
| 26 | 0.457 |
| 28 | 0.376 |
12
| 24 | 0.558 |
| 26 | 0.457 |
| 27 | 0.400 |
| 28 | 0.376 |
| 30 | 0.315 |
14 | 24 | 0.558 |
| 26 | 0.457 |
| 27 | 0.400 |
16 | 27 | 0.400 |
| 28 | 0.376 |
| 30 | 0.315 |
18 | 26 | 0.457 |
| 28 | 0.376 |
20 | 26 | 0.457 |
| 28 | 0.376 |
| 30 | 0.315 |
| 32 | 0.274 |
30 | 30 | 0.315 |
| 32 | 0.274 |
| 34 | 0.234 |
40 | 32 | 0.274 |
| 33 | 0.254 |
| 34 | 0.234 |
| 36 | 0.193 |
| 37 | 0.173 |
50
| 34 | 0.234 |
| 36 | 0.193 |
| 38 | 0.152 |
| 60 | 34 | 0.234 |
| 38 | 0.152 |
80 | 38 | 0.152 |
| 40 | 0.122 |
| 42 | 0.102 |
100 | 41 | 0.112 |
| 42 | 0.102 |
| 43 | 0.091 |
| 200 | 47 | 0.051 |
300 | 48 | 0.041 |
| 49 | 0.031 |
