Wholesale Galvanized Square Woven Wire Mesh / Stainless Steel Crimped Wire Mesh

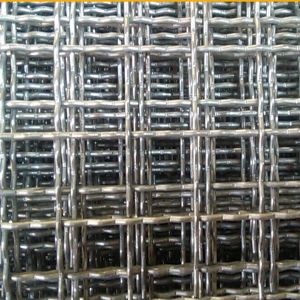

Crimped Wire Mesh is made by carbon iron wire, galvanized steel wire or stainless steel wire.
Crimped Wire Mesh according to the different materials can also be called wire ginning net, galvanized ginning net, white steel ginning net, black steel ginning net, stainless steel ginning, wire ginning net, copper clad steel ginning net.According to the different USES of ginning net can also become mine screen ginning net, pig ginning net, barbecue ginning net, granary ginning net, decorative ginning net.In accordance with the morphology can also be called a knot ginning net, wrapped ginning net, ginning net.Ginning net is a kind of square mesh, which is made of different materials and different specifications of wire by the new type of net weaving machine after ginning.
There is no uniform table for the specification of gauzy mesh, due to the wire diameter, aperture, material, and the evolution of a lot of different.
1. Material
Black wire, white wire, lead wire, stainless steel wire.
2. Weaving
Rolling and braiding, bidirectional wave isolation bending, locking bending, flat top bending, bidirectional bending, unidirectional wave isolation bending.
3. Characteristic
The structure is strong and durable.
4. Use
Mainly used in mining, coal plant, construction and other industries.,Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.
5.Packaging
Pallet or as cilent's requirement
| Wire Gauge (SWG) | Wire Diameter (mm) | Mesh/ Inch | Aperture (mm) | Weight (kg) |
| 6 | 4.8 | 1 | 20.6 | 11.5 |
| 8 | 4.05 | 2 | 9 | 16.5 |
| 10 | 3.2 | 2 | 10 | 10.5 |
| 12 | 2.6 | 3 | 5.9 | 10.5 |
| 14 | 2.0 | 3 | 6.5 | 6 |
| 16 | 1.6 | 4 | 5 | 5.5 |
| 17 | 1.4 | 5 | 5.1 | 5.0 |
| 18 | 1.2 | 5 | 4 | 3.6 |
| 19 | 1.0 | 6 | 3.2 | 3.0 |
| 21 | 0.8 | 7 | 2.8 | 2.3 |
| 22 | 0.7 | 8 | 2.5 | 2 |
